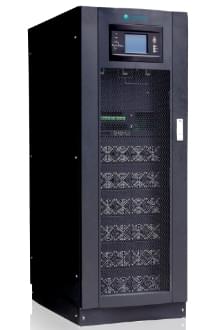

Metartec's new DECI Modular is the UPS for now and for the future. The biggest appeal for the DECI Modular unit is its capability for easy expansion. Previously when a customer’s load increased, the original UPS had to be replaced with a new and higher capacity system. With the DECI Modular UPS there is no need to replace the whole UPS, as only the required number of modules for expansion need to be added.

Due to the ‘hot swappable’ power modules, the unit is almost entirely self contained as each UPS module works with complete functionality and can be added or removed online while the UPS is still running. Its modular design also allows for easy maintenance which reduces the customer’s cost of ownership, making it a more cost-effective critical power solution.

DECI Modular units are available in 120kVA and 200kVA frames with power modules available in 10kVA and 20kVA, allowing users to choose the power requirement according to their needs, and the DECI Modular’s capacity can reach 400kVA by paralleling two 200kVA frames with ten 20kVA modules in each unit.

• Metartec’s DECI Modular system has independent power and control sections, this means that each module runs as an independent UPS.
• The reliability and flexibility of this system is incomparable with traditional UPS’ as the DECI Modular system adopts the centralized multiple parallel N+X format. The unit is designed for system expansion and supports the load with N+1 to N+X levels of protection.
• The DECI Modular’s maximum capacity can be expanded from 20kVA to 400kVA. The system’s capacity of 400kVA has a power module that increases in increments of 20kVA allowing the user to choose the power requirement according to their need.
• The DECI Modular is a scalable parallel redundant UPS system. It consists of three modules: static switch module, display & communication module, and power module which can be placed in parallel from 1 to 20pcs.
• Metartec’s DECI Modular inverter efficiency is ≤ 96% and is designed to produce lower heat emissions, unlike traditional UPS’ that can waste up to 10% energy making the DECI UPS’ more energy efficient.
• With an input THD <3%, and a Power Factor of 0.99, Metartec’s DECI Modular is truly an environmentally sound UPS.
• The DECI Modular Management Software provides real time monitoring and access to data including current operational status, control features, configuration information and more
• The biggest appeal for the DECI Modular is its capability for easy expansion. Previously when a customers’ load increased, the original UPS had to be replaced with a new and higher capacity system. With the DECI Modular UPS there is no need to replace the whole UPS, only the required number of modules for expansion need to be added. This reduces the customer’s costs for the initial equipment purchase and future expansion.
• Similarly the ‘Hot Swappable Modules’ can be added or removed online. There is no need for senior technical personnel to perform this job, which is an all round safer and more convenient process for maintenance and repair as there is no need to switch to a bypass system. Subsequently online expansion or redundancy enhancement can be achieved easily without modification.
